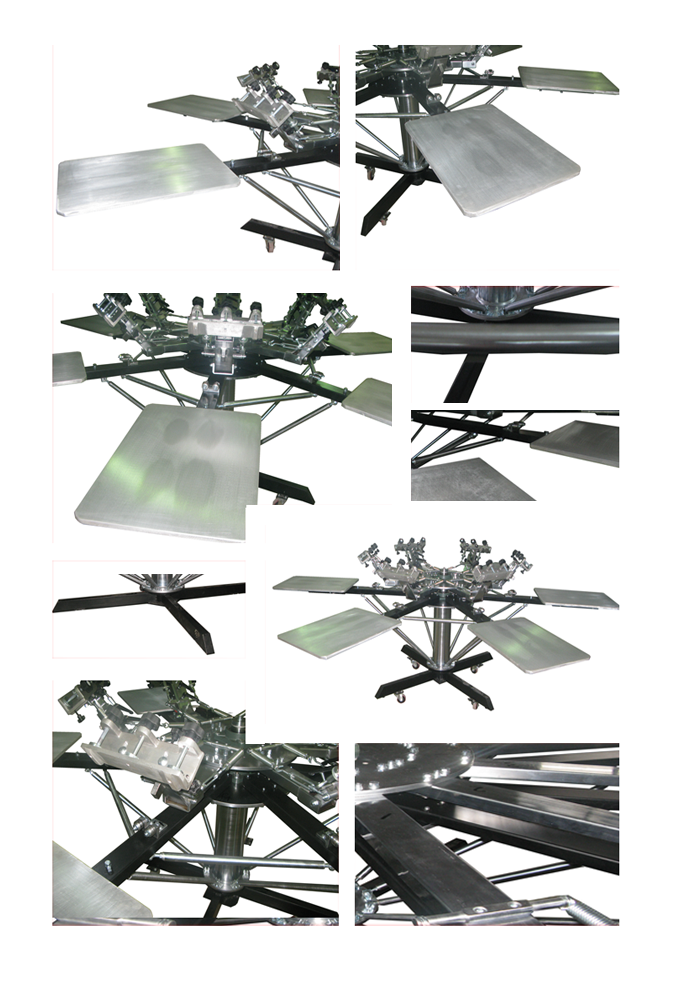

• This is a rotary clothes 6-color manual screen printing machine, suitable for printing 500mm * 500mm about the format of the fabric, paper, clothes; T-shirts and other products.
• Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
• Workbench coated with solvent glue is recommended  for accurate print positioning;
• Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;
• Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
• More suitable for heat set printing ink, printing ink thickness, ink, bright;
• Configuration of infrared drying device, which will help the plastisol ink is fast drying;
• Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.

Application

• T shirt , Clothes, Garment, Fabric, Textile Printing , Cotton
• Glass, Wooden Plate
• CD, DVD.

SM6-5070 Manual 6-color garment screen printing Machine //Parameters

SM6-5050 6-colour Manual-operating rotating flat screen printing machine

• Max printing thickness:0-20 MM;
• Net weight: 560KG;
• Max printing area:450X450mm
• Size of working table: 500×500mm;
• Max printing speed:600cs/H.
• Printing number: 6;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW.

SM6-4565 6-colour Manual-operating rotating flat screen printing machine

• Max printing thickness:0-20 MM;
• Net weight: 560KG;
• Max printing area:400X600mm
• Size of working table: 450×650mm;
• Max printing speed:600pcs/H.
• Printing number: 6;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW

SM6-5070 6-colour Manual-operating rotating flat screen printing machine

• Max printing thickness:0-20 MM;
• Net weight: 560KG;
• Max printing area:450X650mm;
• Size of working table: 500×700mm;
• Max printing speed:600Pcs/H.
• Printing number: 6;
• Drying mode: IR;
• Max height of screen frame: 40mm;
• Max size of screen frame: 550*680mm;
• Wattage of heater: 3.6KW

Works supply: 110V-220V Power supply;

Gross weight: 484kg

Wooden case dimension:1.67×1.65×1.15m;

CM: 3.17CBM

H.S.CODE: 8443198000

Certificate: CE

SM6-5070 Manual 6-color garment screen printing machine//Advantage

• Operated by hand, controllable is well;
• Total-steel rotating-axis system ensure whirling free and Adaptability.
• High-strength support pole make the machine structure rigidity.
• Six-color screen printing one time, overprint is precision .
• Screen frame can be adjustable according to different objects to be printed.
• Screen frame can be rise up after printing so that printing quality.
• High-stabilization working table ensure non-shaking when printing
• IR Dryer with machine make the clothes drying fast
