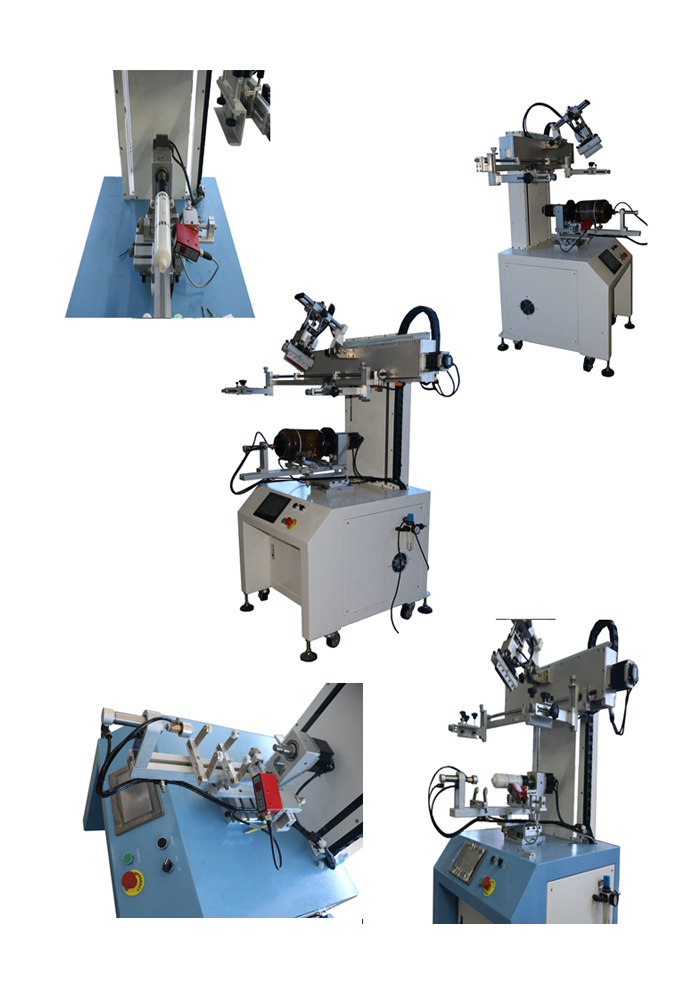

S-400EPL Screen printing machine//Guide
-
100mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
-
Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
-
With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
-
Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
-
Upper and lower part of Screen plate, take place after the table automatically lifting the work piece;
-
You can use the foot switch for automatic operation, the safety factor greatly increased;
-
Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multi-functional , and reduce costs.
S-400EPL Servo Screen printing machine//Application

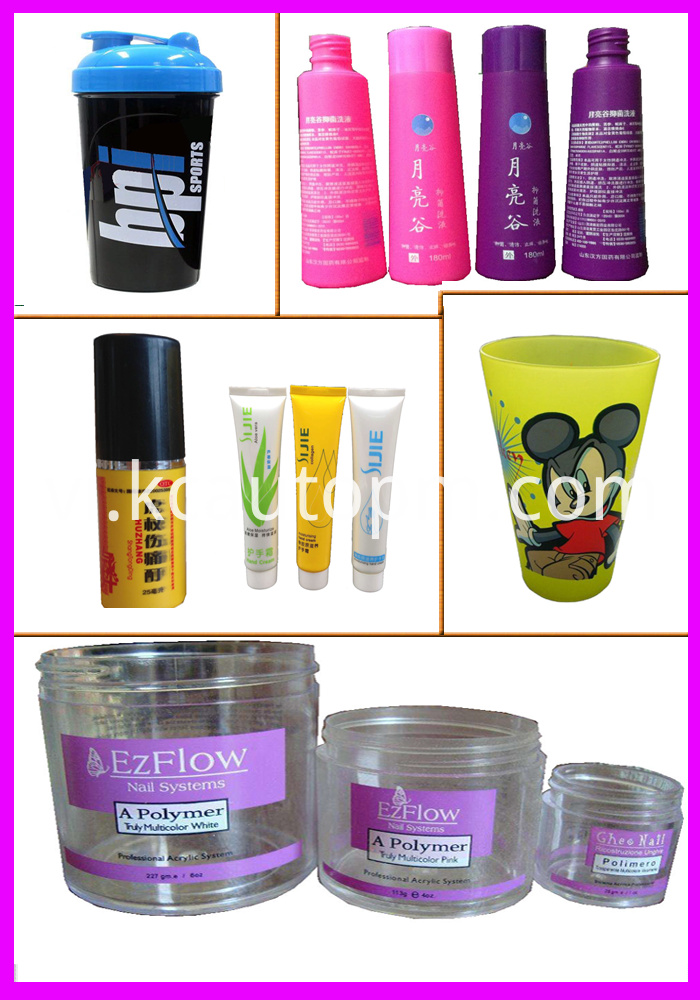

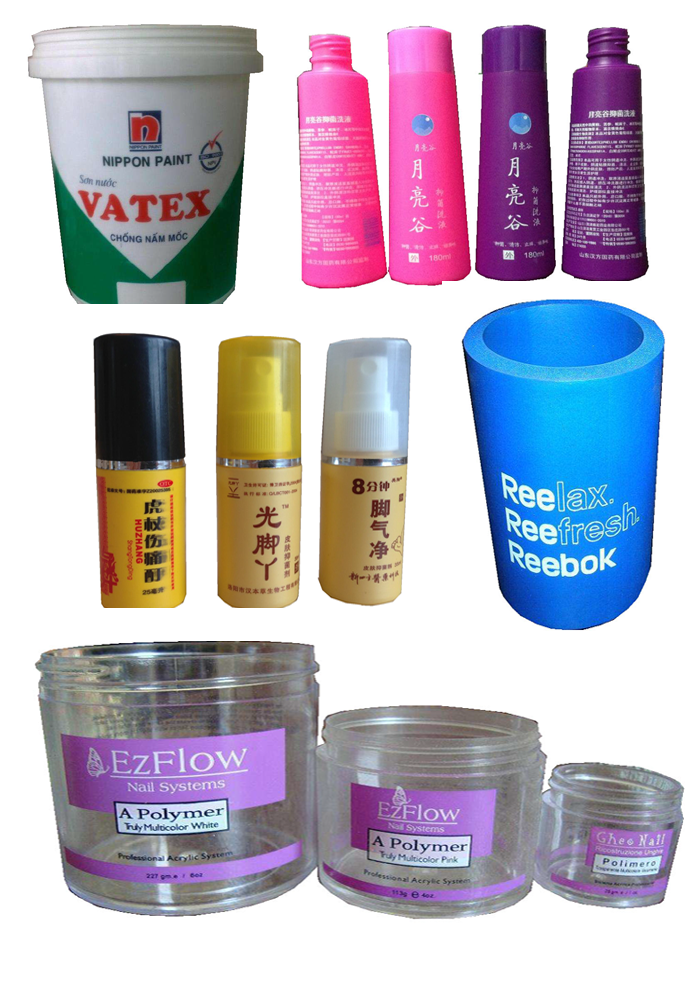

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.
S-400EPL Screen printing Machine //Parameters
-
The max printing thickness: 200 MM;
-
Air consumption: 95 Lit/Min;
-
Outline size: 1080×850×1280MM;
-
The max printing area : 200×250MM;
-
Dimension of working table: 250mm×300mm;
-
Max printing speed: 1300Pc/H;
-
Max frame dimension: 410×350mm;
-
Stroke of Squeegee: 350mm;
-
Stroke of Table cylinder: 100mm;
-
Max Diameter of Products:100mm;
-
Max length of Products: 300m
S-400EPL SERVO Cylinder screen printing Machine//Advantage
-
Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
-
Contact with the substrate , up and down of screen plate, to facilitate the placement of the substrates and removed;
-
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
-
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
-
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
-
Microcomputer control program operations, set up a variety of modes;
-
Four counts digital LED count, high degree of automation;
-
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
-
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
|
