Máy in nhịp độ màu đơn với T-Slot Worktable

• Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
• Equipped with four counters, can effectively measure the number of products;
• Structure using die-casting aluminum, lightweight and solid.

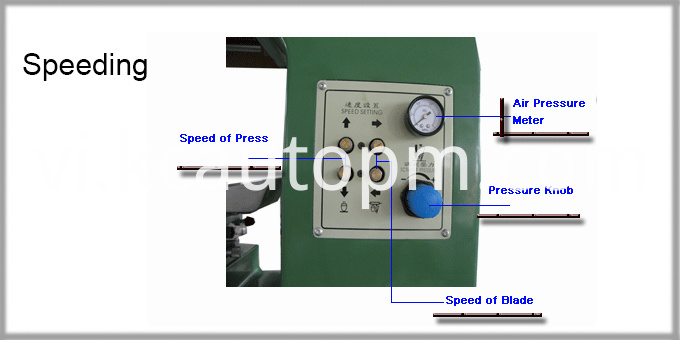

• Independent Rubber pad up and down stroke and speed adjustment function;

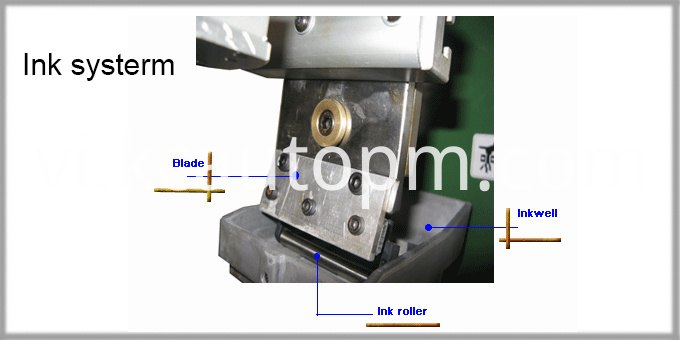

• Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
• Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
• World famous pneumatic components to ensure the long service life of machine;
• Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
• Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.

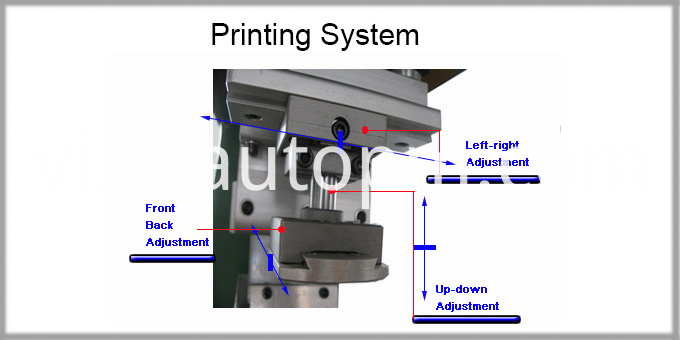

• Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
• T-slot structure, easy installation of fixtures and products;
• Hand pick and place workpiece, operating more handy;
• Microcomputer program control, the movement is more accurate and reliable;

Single Color Tempo Printer with T-slot Worktable//Guide

• With Open inkwell to store ink, ink adjustment more convenient, more suitable for striking observation.
• With coin aluminum structure ensure more stabilization and long life.
• Can print almost small size objects . So sold very nice in the world.

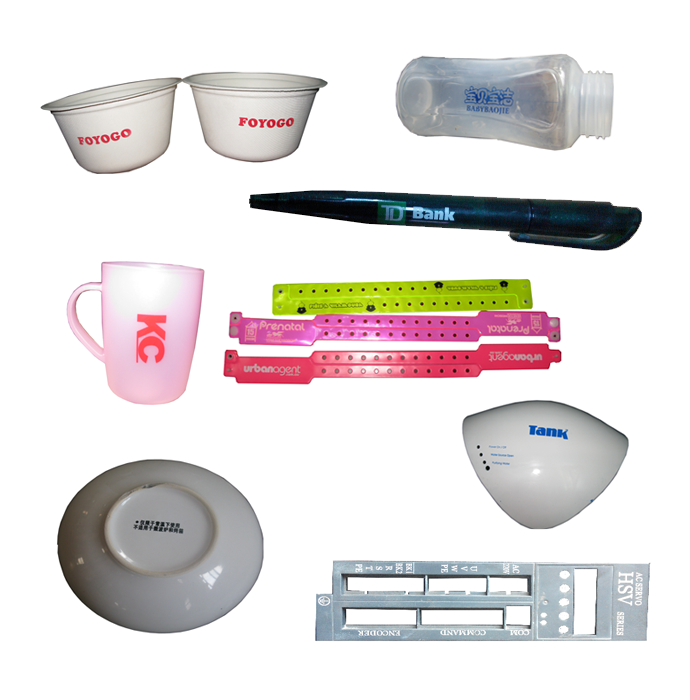

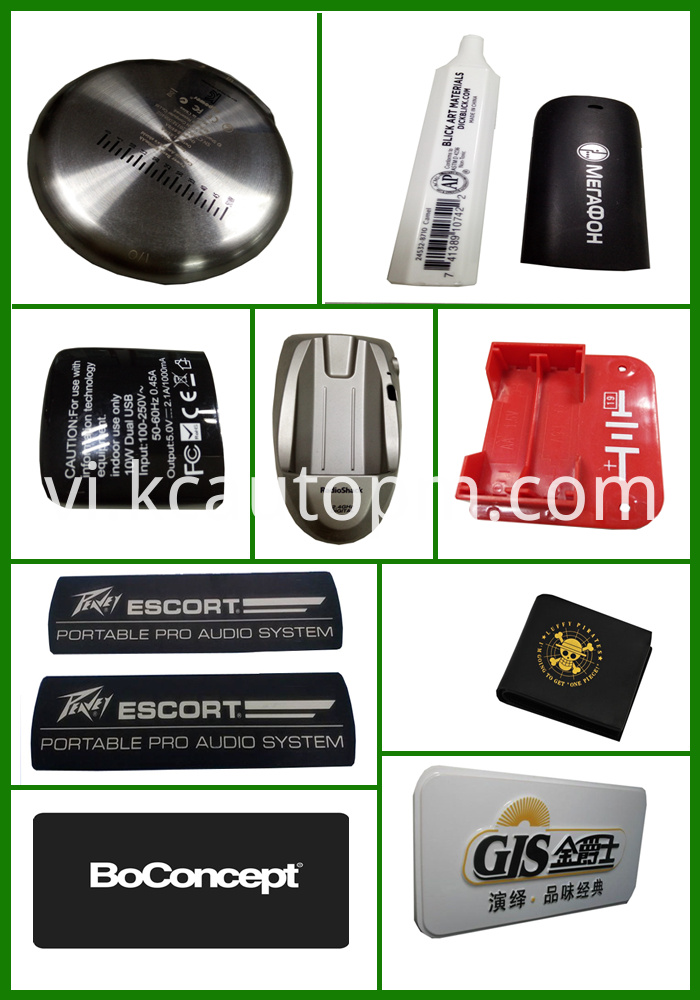

• Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
• Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
• Pneumatic components million times life verification, circuit boards and integrated circuits using the scale of Taiwan's famous full factory inspection;
• Self-balanced scraping ink technology, squeegee clean, easy to replace

Single Color Tempo Printer with T-slot Worktable//Application fields

Single Color Tempo Printer with T-slot Worktable //Parameter

• Max. plate size: 200×250;
• Max. worktable area: 400×150 mm;
• Max. printing area: 170×220;
• Max. printing speed: 1400 pcs/h;
• Printable color quantity:1.

P1-610

• Max. plate size: 200×300;
• Max. worktable area: 400×150 mm;
• Max. printing area: 170×270;
• Max. printing speed: 1400 pcs/h;
• Printable color quantity: 1

Product Details

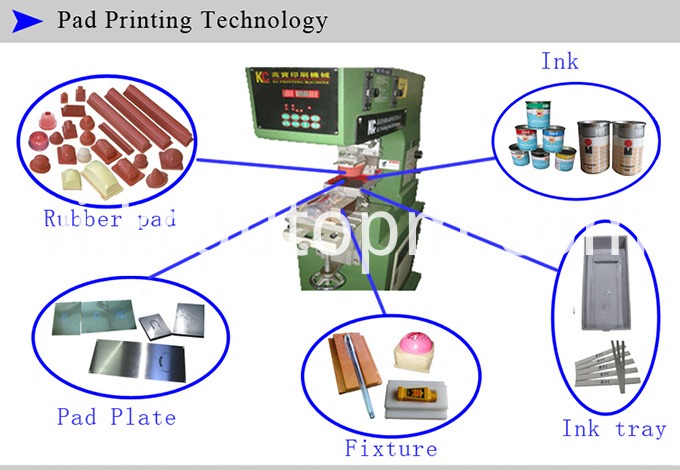

Pad Printing Technology
